PVC free foam sheet

(Alternative name: PVC foam sheet, PVC foam board, PVC foam, Foamed PVC, Foam board, Sun board, PVC formex)

PVC foam sheet is a kind of new man-made environmental protection materials. Its main raw materials are PVC resin, CaCO3, stabilizer ,foaming agent and so on. It has a series advantage on characters as following:

1. Light weight, good flexibility and age durability;
2. Resistant to fire, water, insects, cracking, chemical corrosion, non-warping, non-toxic and self-extinguish;
3. Sound insulation, heat insulation, noise absorption, heat preservation and anti-corrosion;
4. Tough, rigid, smooth, glossy with high impact strength, easy to clean and maintain, can be cut, shaped and installed easily




PVC foam sheet             ( Advertising)	Grade	Economical					Middle					High
	Thickness (mm)	1	1.8	2.5	3.5	4.5	1	1.8	2.8	3.8	4.8	1	2	3	4	5
	Density (g/cm3)	0.8	0.35	0.32	0.32	0.32	0.85	0.40	0.40	0.40	0.40	0.90	0.50	0.50	0.50	0.50
	Size           (mm)	1220 mm x 2440 mm					1220 mm x 2440 mm					1220 mm x 2440 mm
		1220 mm x 1830 mm					1220 mm x 1830 mm					1220 mm x 1830 mm
		1220 mm x 3050 mm					1220 mm x 3050 mm					1220 mm x 3050 mm
		915 mm x 1830 mm					915 mm x 1830 mm					915 mm x 1830 mm
		915 mm x 2440 mm					915 mm x 2440 mm					915 mm x 2440 mm





Thickness: 1mm—4.8mm
Density: 0.32-0.90 g/cm³
Color: Snow white (For Yellow, Grey, Black, Green, Red and Blue color, please confirm with sales)
Size: 4’ x 8’, 4’ x 6’, 4’ x 10’, 3’ x 8’, 3’ x 6’ (For special size, please confirm with sales)
Packing:  PE bag, Carton, Pallet and Plywood crate with pallet
Tolerance:  Thickness ± 0.2mm  Width ± 2mm  Length ± 5mm  Diagonal line ± 5mm  General density ± 0.02 g/cm3

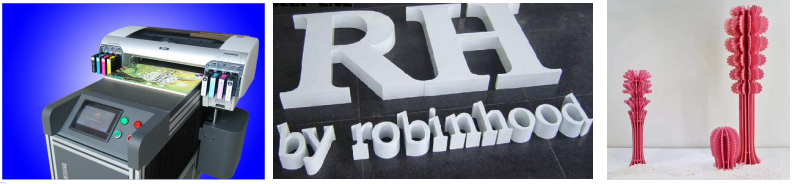

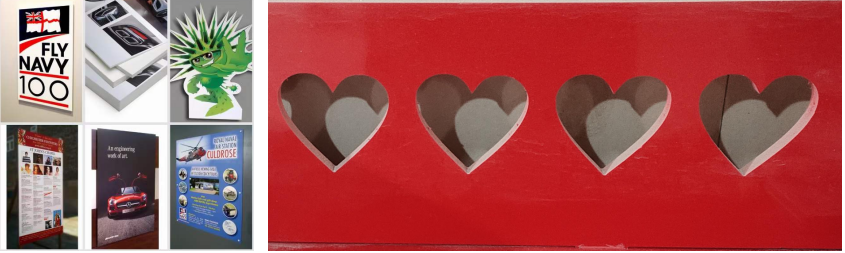

Usage: mainly used in advertising industry, such as silk screen printing, UV flat bed printing, digital direct printing, coating, CNC carving, sign board, LED box back board and so on.
